RG Tech Engineering Works - CNC fiber laser cutting specialist in Chennai

304 · 316 · 316L · 430

Stainless Steel Laser Cutting Services in Chennai

Stainless is bought for the finish as much as the strength, and the cut is where that finish is won or lost. We cut SS from 0.5 mm shim to 25 mm plate on a high-power fiber source, nitrogen-assisted so the edge comes off bright and oxide-free - 304, 316, 316L and 430, up to 8000 x 2500 mm in a single setup.

WhatsApp NowGet Technical Quote
5.0Google ReviewsListed on15+ Years1000+ Projects

Delivered Projects

Our Works

Laser-cut gates, jali screens, temple panels, signage and decor - cut, finished and installed by RG Tech Engineering.

Sliding gate with a laser-cut circular mandala centrepiece and wood-finish slats
Residential main gate with laser-cut mild steel panels beside a brick-clad wall
Modern compound gate with laser-cut mandala panels and wood-finish slats
Wood-finish main gate with laser-cut gold decorative panels
Laser-cut main door panels with gold floral detail on a residence
Full compound gate set with laser-cut slat panels in dark brown
Laser-cut chevron jali gate set in a wood-finish frame
Laser-cut sliding gate in grey with slat and jali pattern panels
Laser-cut main gate and wicket door installed at a residence
Laser-cut main door with floral scroll panels in cream finish
Laser-cut window grill with floral vine pattern in maroon and cream
Laser-cut window grill and jali panel in grey powder coat
Laser-cut door panel with feather and vine motifs
Window grill with laser-cut geometric panels in white
Laser-cut window grill with floral panels, ready for dispatch
Laser-cut geometric jali partition panel in black finish
Laser-cut floral jali screen panel with black powder coat
Laser-cut peacock design panel in mild steel sheet
Pair of laser-cut floral gate panels in primer finish, ready for powder coating
Laser-cut air-conditioner covers mounted along an apartment balcony railing
Powder-coated air-conditioner cover with a laser-cut pebble pattern on a terrace wall
White laser-cut air-conditioner covers fixed to a villa exterior wall
Air-conditioner cover with a laser-cut leaf pattern on an ochre wall
Backlit false-ceiling panel with a laser-cut floral jali in a tapered recess
Corridor false ceiling with backlit laser-cut jali panels and recessed lighting
Corridor ceiling with a backlit laser-cut jali strip in a gold finish
Tables and benches with laser-cut floral side panels at an exhibition stand
Office desk and bench with laser-cut geometric steel leg panels
Floating wall shelves carried on laser-cut brass-finish brackets
Brushed stainless steel laser-cut signage letters mounted on a wall
Laser-cut Tamil nameplate lettering in red powder-coated steel
Laser-cut Welcome nameplate in yellow powder-coated steel
Rameshwaram tourism installation panel with laser-cut heritage scenes and lettering
Rameshwaram viewing deck faced with laser-cut Ram Setu mural panels
Front elevation of the Rameshwaram installation with laser-cut skyline panels
Rameshwaram installation with laser-cut temple and bridge scenes on every face
Yellow powder-coated laser-cut Ganesha panel with floral border
Laser-cut Ganesha nameplate panel with paisley border detail
Laser-cut mandala and floral partition panel in yellow powder coat
Laser-cut floral and mandala panel set finished in yellow powder coat
Decorative laser-cut elephant wall panel in yellow powder-coated steel
Laser-cut kalash and swastik motif in yellow powder-coated steel
Laser-cut Om and diya rangoli panel in red powder-coated steel
Laser-cut dreamcatcher wall hanging in orange powder-coated steel
Laser-cut bird wall art in yellow powder-coated steel
World map and compass desk piece laser-cut from mild steel on a curved stand
Motorcycle-shaped laser-cut key holder with hooks mounted on a wall
Geometric world map wall piece lettered WORLD on a wooden base
Africa map silhouette laser-cut from mild steel on a wooden display base
Lotus-pattern laser-cut napkin holder on a table
View the full gallery

What Goes Wrong Elsewhere

Why Choose RG Tech Engineering

Thickness, edge quality and mill scale are what decide a stainless steel job. Here is what tends to go wrong, and what we do about it.

The cut edge comes back discoloured

Heat tint is what oxygen does to stainless. We cut with nitrogen, which shields the kerf, so the edge arrives bright and needs no polishing before it is seen.

Nobody advises on grade

304 for general work, 316 or 316L where chloride or coastal air is in play, 430 where cost matters more than corrosion. Tell us the environment and we will say which grade the job actually needs.

The protective film is ruined

PVC-filmed sheet is cut film-on with the parameters set for it, so the face you paid for is still protected when the part reaches you.

Thin sheet distorts

Stainless holds heat far longer than mild steel. Cut sequencing and nesting spread that heat rather than concentrating it, so 0.5 - 2 mm sheet stays flat as it cools.

Repeat parts drift batch to batch

One nest, one setup, one program - part 500 measures the same as part 1. Typically +/-0.1 mm on sheet work.

Quotes take days

Send the DXF with the grade, thickness and quantity and you get an itemised, engineer-verified quote within 24 business hours - prototype or production.

How We Work

From your reference to delivered parts

Three steps. Nothing is cut until you have approved the file.

  1. 01

    Share your drawing

    A DXF or DWG, a PDF, a photograph or a hand sketch on WhatsApp. Tell us the grade, the thickness, the finish and the quantity.

  2. 02

    We nest and confirm

    We convert it to a cutting-ready file and nest it to get the most parts out of each sheet, then send it back for your approval before the machine runs.

  3. 03

    We cut, finish and deliver

    Cut at our Ayanambakkam unit, deburred where it needs it, and delivered across Tamil Nadu - with bending, welding or polishing if you want it finished.

Stainless Steel Work We Take On

Looking for something in stainless steel? We cut it.

If your job is not on this list, send it anyway - most of what we cut started as a drawing nobody else would quote.

  • Stainless steel sheet laser cutting0.5 - 6 mm sheet in 304, 316, 316L and 430.
  • Stainless steel plate laser cutting8 - 25 mm plate for structural and process work.
  • SS 304 laser cuttingThe general-purpose grade, for most indoor and dry work.
  • SS 316 & 316L laser cuttingMolybdenum-bearing, for coastal, chemical and marine duty.
  • SS 430 laser cuttingFerritic and magnetic, where cost leads and corrosion is mild.
  • Mirror & brushed finish cuttingCut film-on so the decorative face survives the process.
  • Kitchen & food-grade componentsWorktop cut-outs, trays, covers and hygienic panels.
  • SS jali & decorative screensPerforated partitions, railings and façade panels.
  • Name boards & signage lettersCut lettering and logo plates in brushed or mirror SS.
  • Flanges, gaskets & washersProfile and bolt-hole work cut to drawing.
  • Enclosures & control panel partsCut-outs, vents and mounting plates in 304 or 316.
  • Prototype & production runsOne-offs through to repeat batches, no tooling.
Send your drawing

Other Materials We Cut

Support & FAQ

Stainless steel cutting questions

Do you offer stainless steel laser cutting in Chennai?
Yes. Stainless steel laser cutting is one of our core services, run from our own unit at Ayanambakkam, Chennai. We cut SS from 0.5 mm sheet to 25 mm plate in 304, 316, 316L and 430, and deliver across Chennai and the rest of Tamil Nadu.
Which stainless steel grades do you cut?
304, 316, 316L and 430 as standard, and we will quote 202, 310 or duplex on request. If you are unsure which grade the job needs, tell us where the part will live and we will advise.
Should I use 316 or 316L?
316L is the low-carbon version. If the part will be welded and then left in a corrosive environment, 316L resists the carbide precipitation that can attack a weld seam. For bolted or unwelded parts, plain 316 is usually sufficient.
Will the cut edge be discoloured?
Not when it is cut with nitrogen, which is how we cut stainless by default. Nitrogen shields the kerf from oxygen, so the edge comes off bright and oxide-free. Oxygen cutting is faster and cheaper but leaves a straw-to-blue heat tint that has to be polished out before the part is seen.
Can you cut mirror-finish or brushed stainless without scratching it?
Yes. Decorative sheet arrives with a PVC protective film and we cut it film-on, with parameters set for that film, so the face you paid for is still covered when the part reaches you. Say that it is a finished face when you enquire.
Is laser-cut stainless steel food safe?
The material is - 304 and 316 are the standard food-contact grades. What matters is that the edge is clean and unoxidised, which nitrogen cutting gives you, and that the part is passivated if the specification calls for it. Tell us it is a food-contact part and we will cut and finish accordingly.
What file format should I send?
DXF is ideal. DWG, STEP, PDF and even a clear photograph or hand sketch all work - we convert them into a cutting file and send it back for your approval before anything is cut.
Can you supply the stainless steel as well as cut it?
Yes. We hold common sizes in 304 and 316 and can source 316L, 430 and decorative finishes. You are also welcome to send your own sheet - tell us the grade and surface condition so we set the machine up for the stock that actually arrives.
What thickness of stainless steel can you cut?
From 0.5 mm shim up to 25 mm plate on the fiber laser. Thin stainless needs heat management more than power - it holds heat far longer than mild steel - so sequencing matters as much as the source rating.
What is the difference between SS 304 and SS 316 for laser cutting?
They cut almost identically. The difference is service life, not machining: 316 carries molybdenum, which resists chlorides, so it is the grade for coastal Chennai installations, swimming pools, chemical plant and marine work. 304 is the general-purpose choice everywhere else and costs noticeably less.
Can you cut SS 430?
Yes. 430 is ferritic, magnetic and cheaper than 304, and it suits dry indoor work - appliance panels, trims, decorative fittings. It is less corrosion-resistant, so it is the wrong grade for coastal or wet duty.
Do I need to polish or deburr the edge afterwards?
Usually not. A nitrogen-cut edge on sheet is clean enough to use as it comes, and we deburr where a part needs handling. Thicker plate and any part with a decorative exposed edge can be linished on request.
What tolerance can you hold on stainless steel?
Typically +/-0.1 mm on sheet up to 6 mm. Heavier plate widens with the kerf and the heat-affected zone, so we quote the achievable tolerance alongside the part rather than promising one figure for every thickness.
Do you cut stainless steel jali and decorative screens?
Yes, and it is a large part of what we do. Perforated partitions, railing infills, façade panels and temple screens are cut from our pattern library or from your own artwork, at any scale up to 8000 x 2500 mm.
How much does stainless steel laser cutting cost in Chennai?
Priced per job. Cutting is charged by the distance the beam travels and the thickness it travels through, so a 12 mm plate part takes far longer than the same outline in 2 mm. Grade affects the material cost, not the cutting time - 316 sheet costs more than 304 of the same size. Send the drawing, grade, thickness and quantity for an itemised quote within 24 business hours.
Do you handle bending and welding after cutting?
Yes. Press braking, TIG welding and assembly are all in-house, so a cut part can leave as a finished component rather than a flat blank. Stainless is TIG welded to keep the heat input down and the discolouration local.

Technical Blog

Guides for stainless steel laser cutting

Written by the people who run the machine - what to send us, what it costs, and what to expect back.

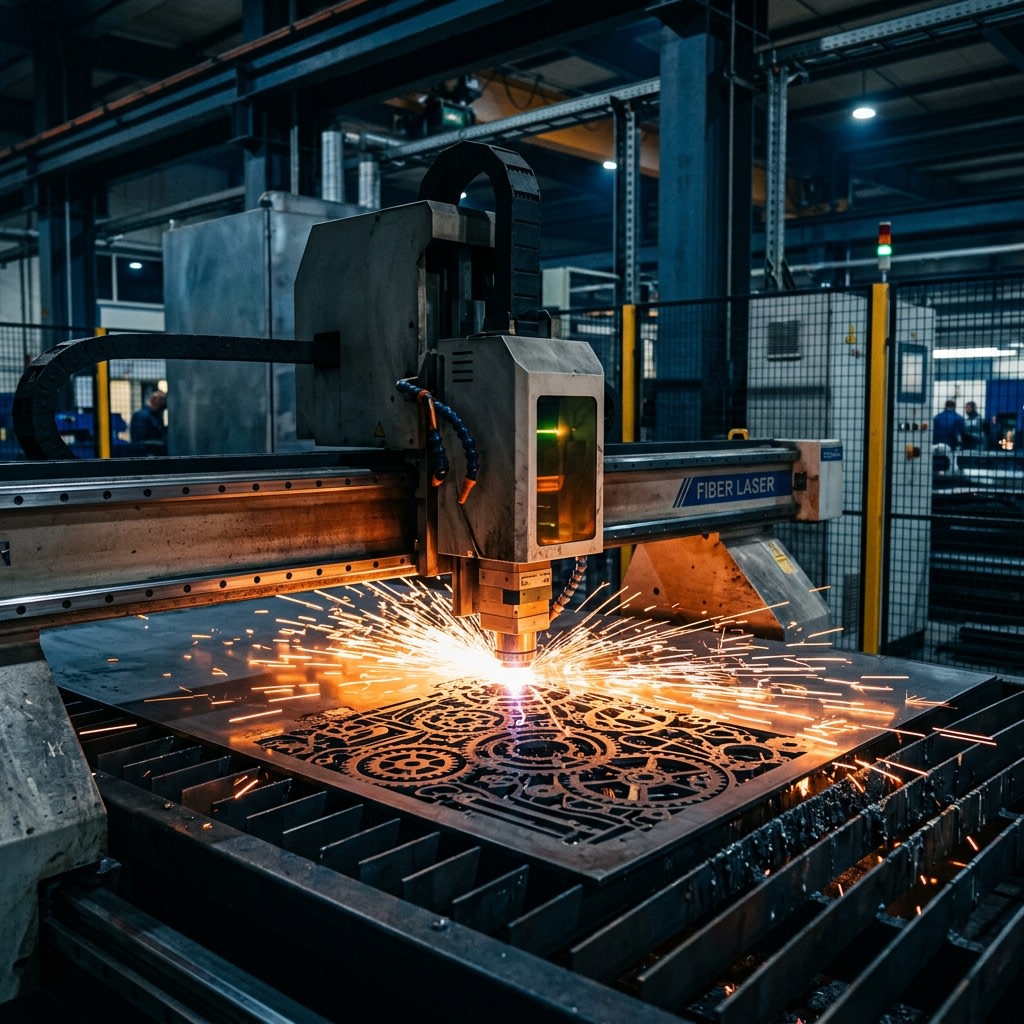

CNC fiber laser cutting machine cutting a steel sheet at RG Tech Engineering, Chennai
