If you have been quoted for "laser cutting" and wondered what you are actually paying for, this guide explains the process end to end: how a fiber laser cuts metal, what it can and cannot do, the thicknesses and tolerances that are realistic, and how it compares with plasma and waterjet.

What Is CNC Fiber Laser Cutting?

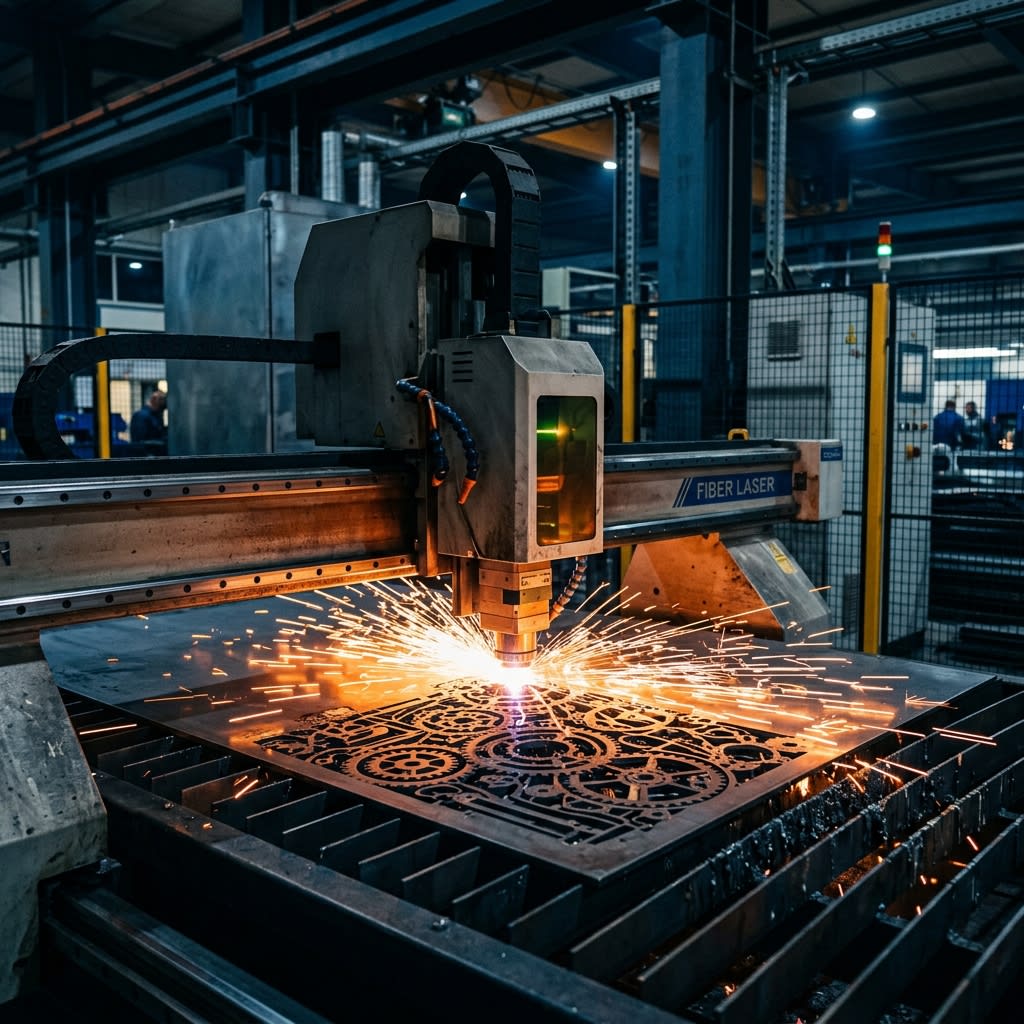

CNC fiber laser cutting is a thermal cutting process. A high-power laser beam is generated in an optically pumped fiber, delivered to a cutting head, and focused to a spot roughly 0.1–0.4 mm across. At that spot the metal is melted and vaporised almost instantly, while a jet of assist gas blows the molten material out of the cut. The head is driven along a path by a CNC controller reading your CAD file.

The word "CNC" means the movement is computer controlled, so the cut follows your drawing exactly and repeats identically on part one and part one thousand. "Fiber" describes how the beam is produced — and that distinction matters more than most buyers realise.

Fiber Laser vs CO2 Laser: Why the Source Matters

Older industrial cutters used CO2 gas lasers. Fiber lasers have largely replaced them for sheet metal work because the beam wavelength (around 1.06 microns) is absorbed far better by metals than the 10.6-micron CO2 wavelength.

• Faster on thin sheet — often two to three times the cutting speed of an equivalent CO2 machine.
• Cuts reflective metals such as copper and brass, which CO2 lasers struggle with and can be damaged by.
• No mirrors or laser gas to maintain, so running cost and downtime are lower.
• Much higher electrical efficiency, which keeps the per-part cost down on long runs.

The trade-off is that CO2 still handles non-metals like acrylic and wood, which fiber cannot cut. For a broader technical primer on the underlying process, TWI has a good overview of laser cutting.

How the CNC Fiber Laser Cutting Process Works

From your file to a finished part, the sequence is consistent:

1. CAD file preparation — your DXF, DWG or STEP file is checked for open contours, duplicate lines and features too small to cut.
2. Nesting — parts are arranged on the sheet to maximise yield. Good nesting is where most of the material saving on a job comes from.
3. Machine setup — the correct nozzle, focal length and assist gas are selected for the material and thickness.
4. Piercing and cutting — the beam pierces the sheet, then follows the contour at a feed rate matched to the material.
5. Deburring and inspection — parts are separated, edges checked, and critical dimensions verified before dispatch.

Assist Gas: The Detail That Decides Your Edge Quality

Assist gas does the work of clearing molten metal from the kerf, and the choice changes both cost and finish:

• Oxygen — used on mild steel. It adds an exothermic reaction that speeds cutting on thicker plate, but leaves an oxidised edge that must be cleaned before painting or powder coating.
• Nitrogen — an inert cut that leaves a clean, bright, oxide-free edge. Essential for stainless steel and for anything being welded or coated straight after cutting. It uses far more gas, so it costs more.
• Compressed air — an economical middle ground for thin mild steel and aluminium where a slight edge oxide is acceptable.

What Materials and Thicknesses Can Be Fiber Laser Cut?

Capability varies by machine power. The table below reflects what RG Tech Engineering runs on our CNC fiber laser in Chennai:

Maximum sheet size matters as much as thickness. Our bed takes sheets up to 8000 x 2500 mm, which means long structural members and large architectural panels are cut in one piece instead of being welded together from smaller sheets.

CNC Fiber Laser Cutting Tolerance and Accuracy

Realistic expectations matter more than headline numbers. On typical sheet gauges a well-maintained fiber laser holds positional accuracy of about +/- 0.1 mm. That figure widens as the plate gets thicker, for two physical reasons:

• Kerf taper — the cut is very slightly wider at the top than the bottom, and the effect grows with thickness.
• Heat input — more heat means more thermal movement in the sheet during cutting, especially on large thin parts.

Cut-edge quality itself is formally classified under ISO 9013, the international standard for thermal cuts, which grades perpendicularity and average surface roughness. If your drawing calls out a specific edge quality, say so at quoting stage.

Fiber Laser Cutting vs Plasma vs Waterjet

Laser is not always the right answer. Choosing correctly is usually the single biggest cost lever on a job:

In short: fiber laser for precision and finish on sheet and medium plate, plasma where thick structural steel needs cutting cheaply and tolerance is loose, waterjet where heat cannot be tolerated at all or where the material is not metal.

Where CNC Fiber Laser Cutting Is Used

The process underpins most of what we make. Precision blanks and brackets go into machine frames and enclosures through our sheet metal laser cutting service, while heavier architectural work becomes custom steel gates and metal safety doors.

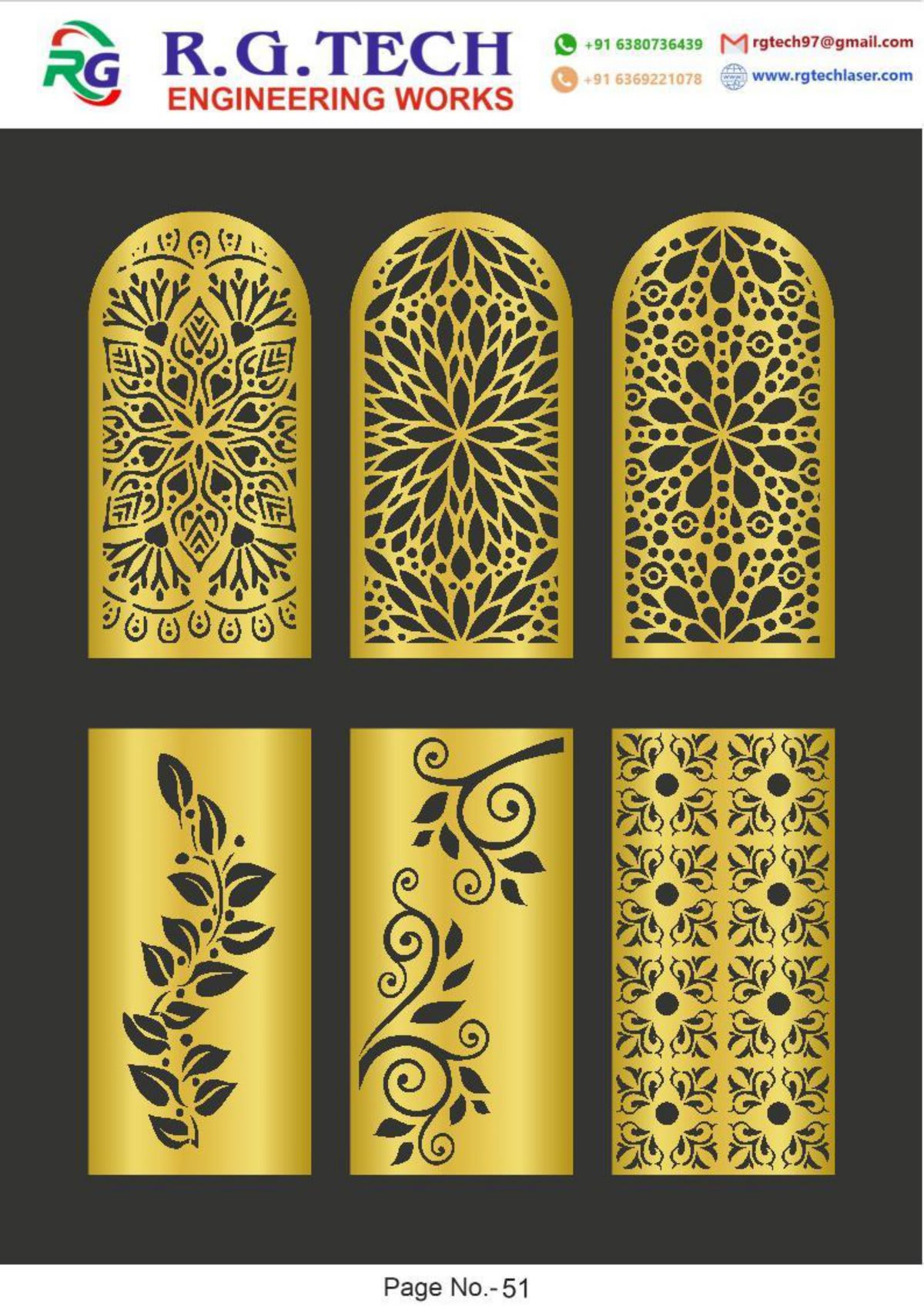

On the architectural side, intricate jali screens and facade cladding are produced as decorative metal panels. Where a part needs bending, welding or coating after cutting, it moves into our metal fabrication services without leaving the building.

You can see finished examples across materials and thicknesses in our project gallery.

How to Prepare Files for CNC Laser Cutting

Most delays and cost overruns start in the file, not on the machine. A few rules save real money:

• Send vectors, not images. DXF or DWG go straight to the machine; a JPEG has to be redrawn.
• Close every contour. Open paths cannot be cut and have to be repaired first.
• Remove duplicate and overlapping lines, or the laser may cut the same path twice.
• Keep the smallest hole diameter at or above material thickness. Below that, holes become unreliable and slow.
• Convert text to outlines, otherwise fonts substitute or vanish on our system.
• State material, grade, thickness and quantity in the drawing or the email — a DXF alone cannot be quoted.
• Allow for kerf on parts that must fit together, especially press-fit joints and slots.

What Affects the Cost of Laser Cutting?

Cutting is priced on machine time and material, not on part area. The main drivers:

• Total cut length — a dense decorative pattern can take many times longer than a plain blank of the same size.
• Number of pierces — every hole starts with a pierce, and piercing is slower than cutting.
• Material and thickness — thicker plate cuts slower and needs more assist gas.
• Assist gas choice — nitrogen costs noticeably more than oxygen or air.
• Nesting efficiency — better nesting means fewer sheets and directly lower material cost.
• Quantity — setup is amortised across the batch, so unit price falls as volume rises.
• Secondary operations — bending, welding, deburring and coating are quoted separately.

Choosing a CNC Fiber Laser Cutting Service

Before placing an order, it is worth asking a prospective supplier:

• What is your maximum thickness in the specific material and grade I need?
• What bed size do you run — can my part be cut in one piece?
• Which assist gas will you use, and what edge condition should I expect?
• Do you provide nesting, and will you share the yield?
• Can you do bending, welding and coating in-house, or does the part move to another vendor?
• What tolerance will you commit to on my critical dimensions?

RG Tech Engineering runs CNC fiber laser cutting from Chennai with an 8000 x 2500 mm bed and in-house fabrication and finishing. Send a drawing through our contact form and you get an itemised quote within 24 business hours.
