Islamic Geometric Jali Panel Designs

Islamic Geometric Jali Laser Cutting Designs - Jali Screens, Prayer Rooms, Gates

Islamic Geometric Jali designs - Islamic jali and geometric screen designs - cut on our CNC fiber laser in Chennai, for partition and jali screens, prayer room screens and main gate inserts. Mild steel, stainless steel, brass and copper, from a 1 ft panel to a full 8 ft arch in one piece.

WhatsAppCall Now

Islamic Geometric Jali panel designs

Floral Jali Panel

Black powder coated mild steel

Star Lattice Panel

Golden PVD on stainless steel

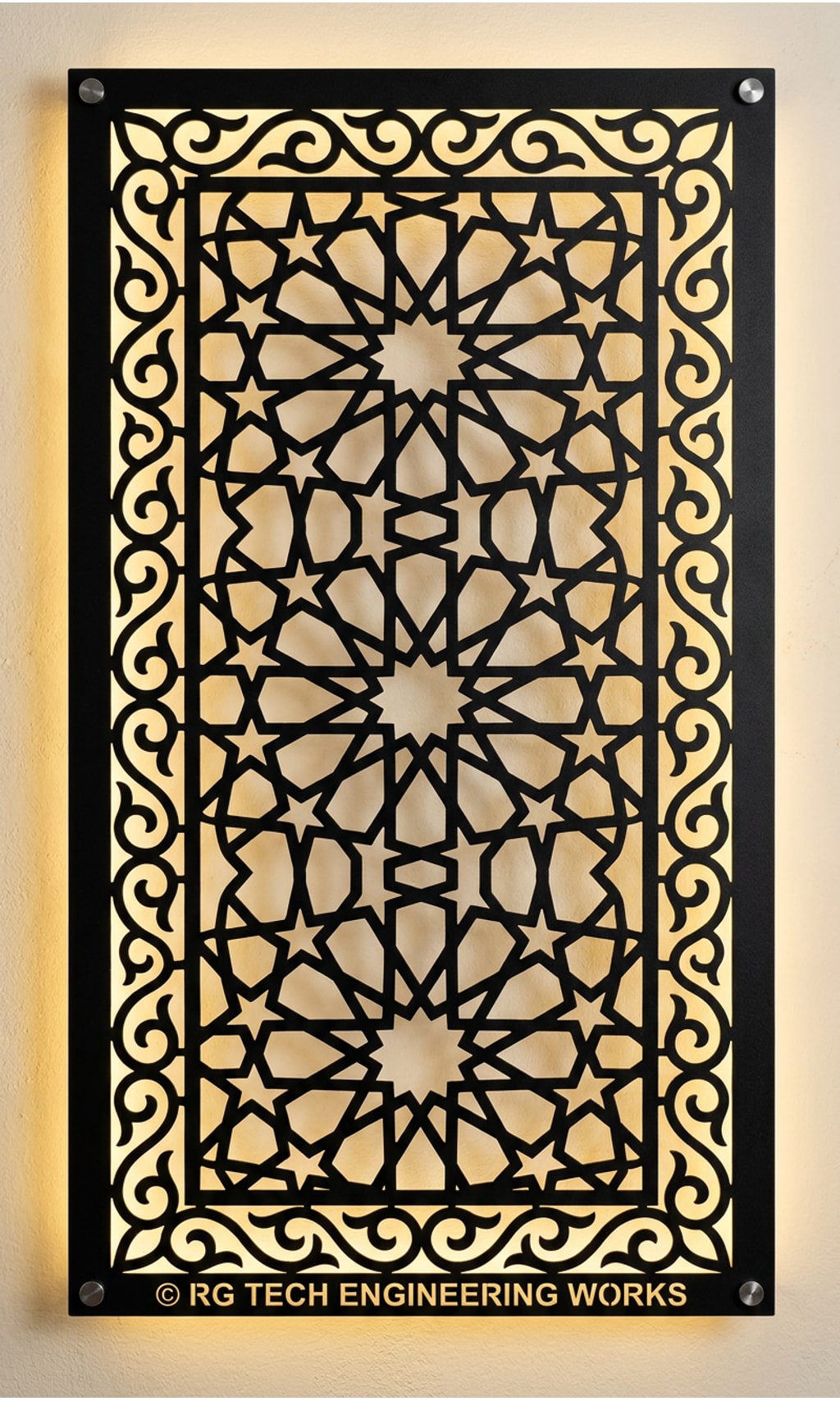

Arabesque Border Panel

Black powder coated mild steel

1 / 3

Custom Work

Cut to your size, from your reference

Every Islamic Geometric Jali design is cut from a vector drawing, so the detail stays crisp at any scale - fine line work on a 1 ft panel, or the same design scaled across a full 8 ft arch.

  1. 01

    Send your reference

    A reference code from the catalogue above, a photograph, a reference image, or a sketch on the back of an envelope. All of them work.

  2. 02

    We make it cuttable

    It is converted to a vector cutting file, and we check the design holds together once metal is removed - adding bridges where an ornament would otherwise float free.

  3. 03

    Cut, finished, delivered

    Cut on our CNC fiber laser in Chennai, then framed and powder coated in house if you want it ready to mount. Sizes are confirmed before anything is cut.

Where these are used

Prayer rooms

Partitions and back panels

Main gates

Gate and compound wall inserts

Masjid arches

Entrance and arch panels

Wall art

Living room and hallway pieces

Send us your Islamic Geometric Jali reference

Share a photo, reference image or sketch on WhatsApp. We come back with a cutting-ready design, sizes and pricing - usually the same day.

WhatsApp Us Now +91 63807 36439

More Designs

More Islamic laser cut panels

Laser cut Mihrab Arch panel by RG Tech Engineering

Mihrab Arch

View designs
Laser cut Masjid Silhouette panel by RG Tech Engineering

Masjid Silhouette

View designs
Laser cut Arabesque Panel panel by RG Tech Engineering

Arabesque Panel

View designs
Laser cut decorative metal panel by RG Tech Engineering

Moroccan Screen

View designs
View all Islamic designs

Support & FAQ

Islamic Geometric Jali design queries

Are the Islamic Geometric Jali designs on this page ready to order?
Yes. Every panel carries a reference code, ISL-01 onwards. Send that code on WhatsApp and we come back with sizes, material options and pricing for it. The images are design renders rather than photographs of delivered jobs, so the finish named under each one is the finish that design depicts - the same cutting file runs in any material we stock.
What sizes and thicknesses can a laser cut Islamic Geometric Jali panel be made in?
Anything from a 1 ft panel to a full 8 ft arch. Our bed takes sheets up to 8000 x 2500 mm, so a large islamic geometric jali panel is cut in one piece with no welded join running through the design. Interior screens are typically 1.5 mm to 3 mm; panels for prayer room screens generally need 3 mm or more to stay flat and resist wind load.
Can a detailed Islamic Geometric Jali design be cut without the thin parts breaking?
That is the main thing we check before cutting. Once metal is removed, thin strands can be left floating or too weak to stay flat. We add discreet bridges where needed and, on very fine work, suggest a slightly thicker sheet so the pattern keeps its shape. It matters most on backlit panels, which are mounted on standoffs with an LED strip behind them and read best with a bolder design and fewer very fine gaps.
Who actually cuts the Islamic Geometric Jali panels sold here?
In our own workshop in Chennai, on our CNC fiber laser - the panels are not brokered out to a third party. That is also why a full 8 ft islamic geometric jali panel comes out in a single piece: the 8000 x 2500 mm bed takes the whole sheet in one setup, so there is no welded joint running through the design.
Does RG Tech deliver Islamic Geometric Jali panels outside Chennai?
Yes. Panels are cut in Chennai and delivered across Tamil Nadu, including Coimbatore, Madurai and Salem. Cutting in one place keeps the finish consistent - the same machine, the same operator and the same powder coating line whichever city the panel is going to.
Can the panel arrive framed and ready to mount?
Both, and you can stop at whichever stage you need. Cutting, bending, welding and powder coating are all in house, so a panel can leave as a bare cut sheet or arrive framed, coated and ready to mount. Cut-only panels usually ship in 3 to 5 working days once the design is approved; framed and powder coated panels take 7 to 12 working days, because coating cure time cannot be rushed without hurting durability.
Can you work from a photograph or a sketch?
Yes, and it is most of what we do. Send a photograph, a reference image or even a rough sketch on WhatsApp and we convert it into a cutting-ready vector. Detailed source images usually need small connecting bridges added before they can be cut - we handle that and show you the adjusted design for approval before anything is cut. Islamic Geometric Jali and Islamic jali and geometric screen are the same subject, so whichever name and whichever reference you bring, the process is identical.
What other laser cutting work does RG Tech take on?
Decorative panels are one part of it. The same fiber laser and finishing line produce designer gates, jali and partition screens, compound wall inserts, signage and industrial job work in mild steel, stainless steel, aluminium, brass and copper. Send a drawing with material and quantity and a firm, itemised quote comes back within 24 business hours, Monday to Saturday.
